DC2043A -

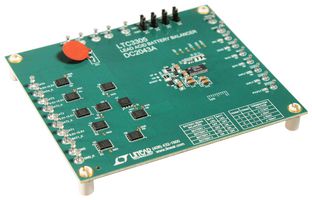

Demonstration Board, Power Management, Battery Balancer, LTC3305

LINEAR TECHNOLOGY DC2043A
LINEAR TECHNOLOGY DC2043A
LINEAR TECHNOLOGY DC2043A

De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.

Artikelnr. fabrikant:
DC2043A
Ordercode:
2493348
Technische datasheet:
(EN)
Bekijk alle technische documenten

Productgegevens

:
Power Management - Battery
:
Demo Board LTC3305
:
LTC3305
:
-
:
Linear Technology
:
Battery Balancer
Zoeken naar vergelijkbare producten Kies en wijzig de bovenstaande eigenschappen om soortgelijke producten te zoeken.

Productoverzicht

The DC2043A is a Demonstration Board for LTC3305EFE a Lead Acid Battery Balancer. The LTC3305 balances up to 4 lead acid batteries connected in series and incorporates all voltage monitoring, gate drive and fault detection circuitry. The LTC3305 employs an auxiliary battery or an alternative storage cell to transfer charge to or from each individual battery within the stack. There are two operating modes, TIMER mode and CONTINUOUS mode, selected by the MODE pin. In TIMER mode, once the balancing operation is complete, the LTC3305 goes to a low power state for a programmed time and then periodically rebalances the batteries.

Toepassingen

Test & Measurement, Industrial
