MURATA POWER SOLUTIONS  DCA5-20PC-2-DC4-RL-C  Panel Meter, LED, 3-1/2 Digits, DC Current, 0A to 1A, 0A to 10A, 0A to 100A, 0A to 1000A

MURATA POWER SOLUTIONS DCA5-20PC-2-DC4-RL-C
Technical Data Sheet (1009.41KB) EN Bekijk alle technische documenten

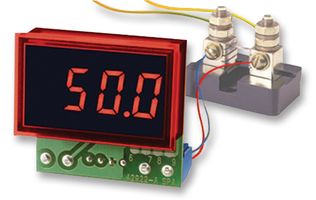

De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.

Productoverzicht

The DCA5-20PC-2-DC4-RL-C is a LED Display Subminiature DC Ammeter is specifically designed to display the output of all popular 50 and 100mV DC-shunts. They are housed in subminiature, 1.38 x 0.88-inch (35 x 22mm), rugged packages that feature a large, 0.37-inch/9.4mm high, LED display. Display visibility is not compromised in any way, the display can be easily read at distances up to 15ft.
  • Isolated power
  • 1000A Input current
  • Completely self-contained, no additional components required
  • Factory calibrated to ±0.1% accuracy, reverse-polarity protection
  • Low power red LED
  • 0 to 60°C Temperature range

Productgegevens

No. of Digits / Alpha:
3-1/2
Meter Function:
DC Current
Meter Range:
0A to 1A, 0A to 10A, 0A to 100A, 0A to 1000A
Digit Height:
9.4mm
Panel Cutout Height:
21.29mm
Panel Cutout Width:
33.93mm
Supply Voltage Min:
8VDC
Supply Voltage Max:
36VDC
Operating Temperature Min:
0°C
Operating Temperature Max:
60°C
Product Range:
DATEL® DCA5-20PC Series
Power Consumption:
1 W
External Width:
33 mm
Operating Temperature Range:
0°C to +60°C
Supply Voltage DC Min:
8 VDC
Supply Voltage DC Max:
36 VDC
Supply Current:
150 mA
Supply Voltage Range:
8V DC to 36V DC
Display Technology:
LED
External Length / Height:
20.3 mm
SVHC:
No SVHC (17-Dec-2015)
External Depth:
25.4 mm

Zoeken naar vergelijkbare producten  per overeenkomende kenmerken

Toepassingen

  • Industrial;
  • Automotive;
  • Communications & Networking;
  • Aerospace, Defence, Military;
  • Automation & Process Control

Wetgeving en milieu

Land van oorsprong:
China

Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd

RoHS-compliantie:
Ja
Tariefnummer:
85312020
Gewicht (kg):
.055
