SSW-109-02-G-S-RA -

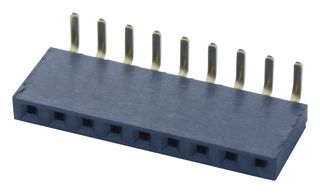

Board-To-Board Connector, Right Angle, 2.54 mm, 9 Contacts, Receptacle, SSW Series, Through Hole

SAMTEC SSW-109-02-G-S-RA
SAMTEC SSW-109-02-G-S-RA

De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.

Fabrikant:
SAMTEC SAMTEC
Artikelnr. fabrikant:
SSW-109-02-G-S-RA
Ordercode:
1668372
Productreeks
SSW Series
Technische datasheet:
(EN)
Bekijk alle technische documenten

Productgegevens

:
1Rows
:
Phosphor Bronze
:
Gold Plated Contacts
:
2.54mm
:
Through Hole
:
9Contacts
:
SSW Series
:
Receptacle
Zoeken naar vergelijkbare producten Kies en wijzig de bovenstaande eigenschappen om soortgelijke producten te zoeken.

Productoverzicht

The SSW series from Samtec are Tiger Buy socket strips. These are through hole socket strips with 0.025" (0.635mm) square post sockets and mates with Samtec TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH and HTSS series of connectors. SSW series connectors have standard and low insertion force Tiger Buy contacts with standard solder tails.
  • Orderable with single/dual/triple rows (-S/-D/-T/ -P/-Q options)
  • Pitch spacing is 2.54mm (1 to 50 contacts per row) with right angle (-RA) orientation
  • High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts
  • Black liquid crystal polymer (-S, -D) / black high temperature thermoplastic (-T) insulator material
  • Complies with UL E111594 and CSA 090871_0_000 standards
  • Contact material is phosphor bronze

Toepassingen

Industrial
