Heeft u meer nodig?
Hoeveelheid | |
---|---|
1+ | € 1,150 |
10+ | € 0,835 |
50+ | € 0,679 |
100+ | € 0,522 |
500+ | € 0,518 |
1000+ | € 0,513 |
Productgegevens
Productoverzicht

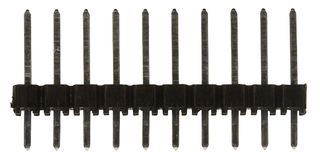

The 90120-0130 is a 10-circuit 1-row 2.54mm pitch C-Grid III™ vertical header with tin-plated brass contacts and through hole termination. This 90120 series PCB header is made of polyester, mates with 90147 C-Grid® PC board connector, 90123 C-Grid III™ modular crimp housing, suitable for signal and wire-to-board applications. The 3rd generation C-Grid III 2.54mm pitch post and receptacle interconnection system offers complete design flexibility and modular components. C-Grid III has been developed to meet the latest industry requirements. Header will accept both discrete wire and ribbon cable connectors. C-Grid III box contact design employs the same mating concept with all termination techniques. A uniform locking system on all contacts allows full interchangeability inside different housing styles. C-Grid III is fully compatible with the industry standard DIN41651 as well as the French norm HE-13/14.
- Highly versatile
- Unique design
- Fully intermateable/interchangeable with Molex's QF-50 product range
- Black colour
- UL94V-0 flammability rating
- Current rating per contact is 3A
- 350VAC/DC voltage rating
- Operating temperature range from -55°C to +125°C
Toepassingen
Commercial Vehicle, Consumer Electronics
Technische specificaties
Wire-to-Board
1Rows
Through Hole Straight
Unshrouded
Tin Plated Contacts
No SVHC (21-Jan-2025)
2.54mm
10Contacts
C-Grid III 90120
Brass
Pin Header
Technische documenten (4)
Alternatieven voor 90120-0130
5 gevonden producten
Wetgeving en milieu
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Indonesia
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
RoHS
RoHS
Conformiteitsverklaring
