Pagina afdrukken

De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.
37 Op Voorraad
45 U kunt nu voorraad reserveren
Levering de volgende werkdag
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | € 246,500 |
5+ | € 241,570 |
Prijs voor:Reel of 1
Minimum: 1
Meerdere: 1
€ 246,50 (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantALPHA WIRE
Artikelnr. fabrikant9174 BK001
Ordercode1302765
Technische datasheet
Coaxial Cable TypeRG174
Wire Gauge26AWG
Conductor Area CSA0.14mm²
Impedance50ohm
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Jacket ColourBlack
Jacket MaterialPVC
Conductor MaterialTinned Copper
No. of Max Strands x Strand Size7 x 34AWG
External Diameter2.54mm
Product Range-
SVHCTo Be Advised
Productoverzicht

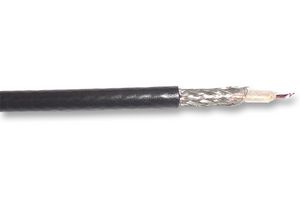

The 9174 series from Alpha Wire are coaxial cable. This coaxial cable conducts electrical signal using an inner conductor surrounded by a polyethylene insulating material and enclosed by a tinned copper braid shield. It is protected by a PVC outer insulating jacket. These cables are ideal for data communications and LAN applications.
- CPR: Not Yet Qualified
- Conductor size of 24AWG and 7/32AWG strand size
- Voltage rating of 1100Vrms
- Available in different lengths
- UL AAWM/STYLE 1354, MIL-C-17D/119F RG 174/U and CE certified
- Available in variety of jacket colours
- Operating temperature range -40°C to 80°C
- Characteristic Impedance of 50 ohm
Toepassingen
Industrial, Power Management, Communications & Networking
Technische specificaties
Coaxial Cable Type
RG174
Conductor Area CSA
0.14mm²
Reel Length (Imperial)
1000ft
Jacket Colour
Black
Conductor Material
Tinned Copper
External Diameter
2.54mm
SVHC
To Be Advised
Wire Gauge
26AWG
Impedance
50ohm
Reel Length (Metric)
304.8m
Jacket Material
PVC
No. of Max Strands x Strand Size
7 x 34AWG
Product Range
-
Technische documenten (1)
Alternatieven voor 9174 BK001
3 gevonden producten
Aanverwante producten
2 gevonden producten
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Mexico
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Mexico
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:To Be Advised
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):3.1751
