Pagina afdrukken
De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.
FabrikantAMPHENOL ADVANCED SENSORS
Artikelnr. fabrikantWTF083B004
Ordercode4294641
Technische datasheet
95 Op Voorraad
Heeft u meer nodig?
Levering de volgende werkdag
Bestel vóór 17:00 uur - standaardverzending
Hoeveelheid | |
---|---|
1+ | € 11,780 |
10+ | € 10,280 |
25+ | € 9,810 |
50+ | € 9,470 |
100+ | € 9,170 |
Prijs voor:Each
Minimum: 1
Meerdere: 1
€ 11,78 (excl. BTW)
Onderdeelnr. toevoegen / Regelopmerking
Wordt alleen voor deze bestelling toegevoegd aan uw Orderbevestiging, Factuur en Verzendnota.
Dit nummer wordt toegevoegd aan de Bestelbevestiging, Factuur, Verzendnota, E-mail met Webbevestiging en Productetiket.
Productgegevens
FabrikantAMPHENOL ADVANCED SENSORS
Artikelnr. fabrikantWTF083B004
Ordercode4294641
Technische datasheet
Temperature Sensor TypeCoolant Temperature Sensor
Measured Temperature Min-40°C
Measured Temperature Max100°C
Supply Voltage Min-
Supply Voltage Max-
Temperature Transmitter Output Type-
Temperature Transmitter Output-
Loop PoweredNo
Sensor MountingPanel Mount
Operating Temperature Min-
Operating Temperature Max-
Product Range-
SVHCNo SVHC (07-Jul-2017)
Productoverzicht

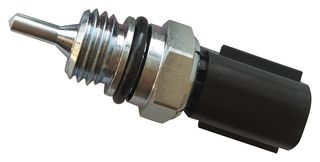

WTF083B004 Thermometrics coolant temperature sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module in electric vehicles (EV) and plug-in hybrid electric vehicles (PHEV). The purpose of this sensor is to relay signal to the battery management system (BMS) in the event of overheating. Applications include battery coolant, HVAC refrigerant, gear box oil, inverter coolant, fuel cell.
- 316L stainless steel housing material, compact and light weight design
- USCAR compliant integrated connector, IP67 ingress compliant
- Fast response time, robust design in a variety of applications
- R at 25°C is 2828ohm ±1.3%, beta (25/85)°C is 3975K ±0.75%
- 5 seconds from 25°C to 85°C in water response time
- Temperature accuracy is R at 25°C ±0.3°C
- HNBR O-ring material, PBT-GF15 connector material
- Operating temperature range from -40°C to 100°C
Technische specificaties
Temperature Sensor Type
Coolant Temperature Sensor
Measured Temperature Max
100°C
Supply Voltage Max
-
Temperature Transmitter Output
-
Sensor Mounting
Panel Mount
Operating Temperature Max
-
SVHC
No SVHC (07-Jul-2017)
Measured Temperature Min
-40°C
Supply Voltage Min
-
Temperature Transmitter Output Type
-
Loop Powered
No
Operating Temperature Min
-
Product Range
-
Technische documenten (1)
Wetgeving en milieu
Land van oorsprong:
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:South Korea
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:South Korea
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
Tariefnummer:90251900
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:Ja
RoHS
Voldoet aan RoHS-richtlijn voor ftalaten:Ja
RoHS
SVHC:No SVHC (07-Jul-2017)
Download conformiteitsverklaring
Conformiteitsverklaring
Gewicht (kg):.014197
