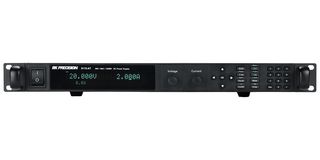

BK9115-AT

Any 9115 series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analogue style knobs to quickly make incremental voltage or current changes. Alternatively, users can control the power supply, execute test sequences or log measurements using the provided PC software application. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators.

• Compact, high density, 1U rackmount form factor
• High programming and readback resolution of 1 mV/1 mA
• Adjustable voltage slope (rise and fall time)
• Sequence programming (list mode)
• Save and recall up to 100 instrument settings
• Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands
• Analogue interface with control and monitoring functions
• Remote sense
• Overvoltage/overpower/overtemperature protection, and key-lock function
• Test functions compliant to automotive standards
• Soft panel for remote control, test sequence generation and data logging

Inhoud

User manual, AC power cord, Rackmount kit, Certificate of calibration and test report.

Opmerkingen

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
