02 02 160 2301

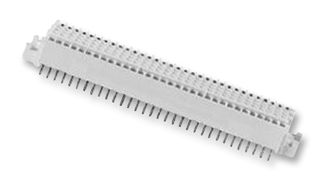

The 02021602301 is a 2.54mm 160-position 5-row female HAR-BUS® 64 VME64X Extension Connector System for data transfer rates up to 320Mbps. Straight orientation, with flange, copper alloy contacts and press-in termination. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.

• PL 2 according to IEC 61076-4-113 250 mating cycles
• Additional contacts for I/O and system upgrade
• Supports plug-and-play function
• Improved signal/ground ratio for reliable signal data transfer
• Live insertion for replacing processor or memory cards without closing down system

Toepassingen

Industrial
