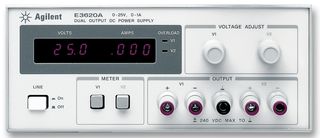

E3620A

E3620A is a 50W dual-output non-programmable DC power supply. It is a small, compact size power supply for bench use features low-noise and excellent regulation and overload indicator to monitor output.

• 2 x 25V, 1A output rating
• Load and line regulation <lt/> 0.01% + 2mV
• Ripple & noise from 20Hz to 20MHz of normal mode voltage rms: 350µV, peak-to-peak: 1.5mV
• Meter accuracy of ±0.5% + 2 counts at 25°C ±5°C
• Common mode current <lt/> 1μArms
• Features isolated dual outputs, 10 turn pots CV, CL
• Size is 88.1mm H x 212.3mm W x 392.4mm D
• 3 year warranty

Inhoud

DC power supply, Product reference CD, power cord.

Opmerkingen

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
