102-301

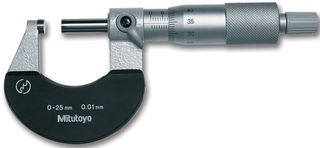

102-301 is an outside micrometer with heat Ins. plate. It is a basic, cost effective, non-digital micrometer. It has cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

• Analog, 0 to 25mm range, 0.01mm graduation, ±2µm maximum Permissible Error J MPE
• Accuracy is ±2µm, 0.6µm flatness, 2µm parallelism
• With spindle lock, ø6.35mm, spindle pitch 0.5mm measuring spindle
• Thimble and sleeve satin chrome finish, ø18mm scale

Inhoud

Outside micrometer with heat Ins. plate, Key, Setting standard (from 25 mm upward), Certificate of inspection (0-50 mm range).
