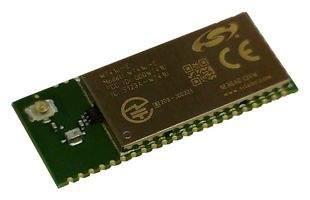

WT11U-E-AI56

Fully integrated Bluetooth 2.1 + EDR, class 1 module combining antenna, Bluetooth radio and an on-board iWRAP Bluetooth stack. The WT11u provides an ideal solution for developers that want to quickly integrate long range and high performance Bluetooth wireless technology to their design without investing several months into Bluetooth radio and stack development. It provides a 100dB link budget ensuring long rage and robust Bluetooth connectivity. It is suitable for industrial and M2M, point-of-sale devices and computer accessories.

• An iWRAP 5.6 firmware with U.FL connector
• 17dBm transmit power and -84dBm (DH5) receiver sensitivity
• 350meters line of sight range
• UART and USB host interfaces
• 802.11 co-existence interface
• 6 software programmable IO pins
• 2.7V to 3.6V operating voltage

Waarschuwingen

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
