WT41U-A-AI56

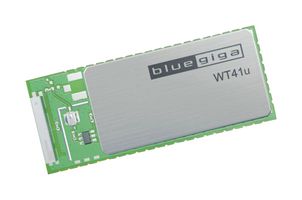

WT41u Bluetooth® module with internal chip antenna. WT41u is a highly integrated and sophisticated Bluetooth® module containing all the necessary elements from Bluetooth® radio and a fully implemented protocol stack. It provides an ideal solution for developers who want to integrate Bluetooth® wireless technology into their design with limited knowledge of Bluetooth® and RF technologies. Suitable for use in hand held terminals, industrial devices, point of sale systems, PCs, Personal Digital Assistants (PDAs), computer accessories, access points and automotive diagnostics units.

• Fully qualified Bluetooth v2.1 + EDR end product
• Firware iWRAP 5.6
• 17dBm transmit power and -94dBm receiver sensitivity
• Class 1, range up to 650 meters with chip antenna or up to 1Km with an external dipole
• USB interface (USB 2.0 compatible)
• UART with bypass mode
• 6 x GPIO, 1 x 8bit AIO
• Integrated iWRAP™ Bluetooth stack or HCI firmware

Waarschuwingen

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
