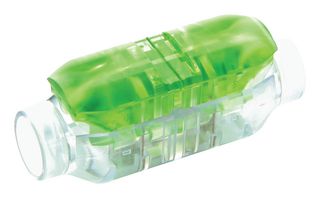

2213800-1
Wire Splice, IPX8, CoolSplice, IDC / IDT, 18 AWG, 18 AWG, 0.75 mm², Wire Splice
Heeft u meer nodig?
| Hoeveelheid | |
|---|---|
| 1+ | € 2,190 |
| 10+ | € 1,550 |
| 100+ | € 1,410 |
| 250+ | € 1,320 |
| 500+ | € 1,230 |
| 1000+ | € 1,220 |
Productgegevens
Productoverzicht
The CoolSplice connector range from TE Connectivity was designed for easy field installation. The CoolSplice Series allows for push button termination using a common pair of pliers. Both wires are terminated independently for ease of use and this feature allows for factory pre-termination of one wire and field termination of the second during installation. The Key benefits are enable a waterproof solution with an IP rated splice and save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC). Typical applications include outdoor lighting, indoor lighting fixtures and wiring harness field repairs.
- Simple push button termination
- Reliable and proven insulation displacement technology
- CoolSplice operating temperature between -40°C and 105°C
- Left/right side independent terminations
- Slim-symmetrical glossy appearance
- Visually controlled termination
Toepassingen
Industrial, Lighting, Maintenance & Repair, Security
Technische specificaties
CoolSplice
18AWG
0.75mm²
Green
Phosphor Bronze
IDC / IDT
18AWG
Wire Splice
PC (Polycarbonate)
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (21-Jan-2025)
Technische documenten (3)
Alternatieven voor 2213800-1
1 product gevonden
Wetgeving en milieu
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Austria
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
RoHS
RoHS
Conformiteitsverklaring
