278-431-000
Multipair Cable, Audio, Per M, Screened, 1 Pair, 0.34 mm²
Neem contact met mij op wanneer het product weer op voorraad is
| Hoeveelheid | |
|---|---|
| 1+ | € 4,090 |
| 10+ | € 3,950 |
| 25+ | € 3,810 |
| 50+ | € 3,540 |
Productgegevens
Productoverzicht

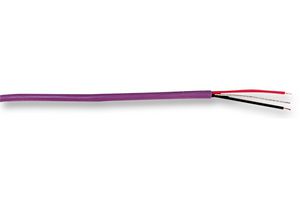

The 278-431-000 is a 22AWG 1-pair purple extended AES/Analogue LSZH installation Cable with bare ultra-pure oxygen free copper wire conductors and foam skin polyolefin insulation. It provides a solution for the extended distance transmission of 96kHz AES/EBU digital audio-over 150m without active equalisation. It is also suitable for long analogue audio runs and any critical balanced data signal that requires low capacitance. It is foil screened pairs with polyester overwrap to keep the overall diameter to a minimum-pairs should be sleeved with PVC or heat-shrink sleeving when broken out for termination. Jacket material specified as the thermoplastic polymer SHF1, compliant with IEC 60092 electrical installations.
- CPR: Not Yet Qualified
- Conductors for low capacitance and excellent attenuation figures
- Electrically engineered for long distance 96KHz digital audio transmission
Toepassingen
Audio
Technische specificaties
Screened
-
-
Red
-
Copper
Purple Series
1 Pair
0.34mm²
-
7 x 0.25mm
LSZH
4.5mm
Technische documenten (1)
Alternatieven voor 278-431-000
1 product gevonden
Aanverwante producten
1 product gevonden
Wetgeving en milieu
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerdLand van oorsprong:Italy
Land waarin het laatste noemenswaardige fabricageproces is uitgevoerd
RoHS
Conformiteitsverklaring
