EV_T4086

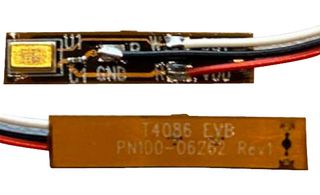

Evaluation Board, MMICT4086‐00‐908, MEMS Microphone, Audio
De afbeeldingen zijn alleen bedoeld ter illustratie. Raadpleeg de productomschrijving.
Niet langer geproduceerd
Productgegevens
FabrikantTDK INVENSENSE
Artikelnr. fabrikantEV_T4086
Ordercode3782338
Technische datasheet
Silicon ManufacturerTDK
Silicon Core NumberMMICT4086-00-908
Kit Application TypeAudio
Application Sub TypeMEMS Microphone
Kit ContentsEVALUATION BOARD MMICT4086-00-908
Product Range-
SVHCNo SVHC (17-Jan-2023)
Productoverzicht
Evaluation board for MMICT4086‐00‐908 Analog MEMS Microphone. The T4086 is an analogue MEMS microphone with high SNR in small package size. The T4086 includes a MEMS microphone element, an impedance converter and an output amplifier. Other high‐performance specifications include 127 dB SPL acoustic overload point, tight ±1 dB sensitivity tolerance and enhanced immunity to both radiated and conducted RF interference.
- Single ended, non‐inverting analogue output
- −38 dBV sensitivity
- Frequency response from 95 Hz to 20 kHz
- Enhanced RF immunity
- PSRR of -98 dBV(A)
- 2.75 × 1.85 × 0.9 mm surface‐mount package
Technische specificaties
Silicon Manufacturer
TDK
Kit Application Type
Audio
Kit Contents
EVALUATION BOARD MMICT4086-00-908
SVHC
No SVHC (17-Jan-2023)
Silicon Core Number
MMICT4086-00-908
Application Sub Type
MEMS Microphone
Product Range
-
Technische documenten (2)
Aanverwante producten
1 product gevonden
Wetgeving en milieu
Tariefnummer:85423990
US ECCN:EAR99
EU ECCN:NLR
RoHS-compliantie:N.n.b.
Voldoet aan RoHS-richtlijn voor ftalaten:N.n.b.
SVHC:No SVHC (17-Jan-2023)
