U2761A

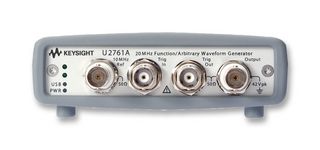

U2761A is a 20MHz USB modular function/arbitrary waveform generator. This function generator offers 10 standard waveforms plus pulse and arbitrary waveforms generation capabilities. It uses a standard high-speed USB 2.0 interface that provides ease of connectivity ─ allowing users to set up and configure tests swiftly with the plug and play feature. The U2761A can function as a standalone module or as a modular device in the U2781A USB product chassis, providing expansion capabilities and a compact solution when used with the other modules in the USB Modular Instruments and DAQ family.

• 20MHz sine and square waveforms
• Ramp, triangle and DC waveforms
• Pulse generation edge
• 14bit, 50MSa/s, 64Kpoint arbitrary waveforms
• Built-in AM, FM, PM, ASK, FSK, PSK modulation types
• High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft Windows operating systems)
• Standalone or modular capabilities
• Arbitrary waveform (14-bit, 64K points 50MS/s)
• Includes BenchVue software license
• Compatible with a wide range of Keysight Development Environments (KDEs)
