S25-022
Contact, Connector, Receptacle, Solder, 2.54 mm, 16 AWG, Spring Probe, 2.54 mm, 3 A, 23.7 mm

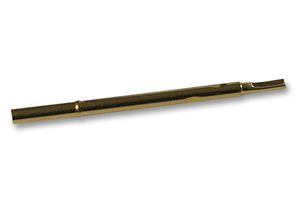

Image is for illustrative purposes only. Please refer to product description.
304 In Stock
2,000 more incoming. You can reserve stock now
Next Day Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | € 1.730 |
| 5+ | € 1.640 |
| 10+ | € 1.550 |
| 20+ | € 1.500 |
Price for:Each
Minimum: 1
Multiple: 1
€ 1.73 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoS25-022
Order Code9960260
Technical Datasheet
Connector TypeSpring Probe
Centreline Spacing2.54mm
Connector Tip Style-
Current Rating3A
Overall Length23.7mm
Spring Force Initial-
Spring Force Working Travel-
Product Range-
Product Overview
S25-022 is a sleeve/receptacle for two-part spring probe with a 5.8mm retaining feature, solder cup for 22-30 AWG. It is designed for use with probes P25-0822, P25-0123, P25-0423, P25-1223, P25-4023 or P25-5223.
- Vertical connector orientation
- Gold finish
- 260°C for 10 seconds maximum soldering temperature
- Brass contact
- Operating temperature range from -40 to 180°C
Technical Specifications
Connector Type
Spring Probe
Connector Tip Style
-
Overall Length
23.7mm
Spring Force Working Travel
-
SVHC
No SVHC (21-Jan-2025)
Centreline Spacing
2.54mm
Current Rating
3A
Spring Force Initial
-
Product Range
-
Technical Docs (2)
Alternatives for S25-022
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates CompliantYes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000132
