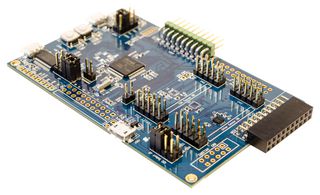

DK-20680HP
MOTION SENSOR DEVELOPMENT KIT
- Manufacturer:
- TDK INVENSENSE TDK INVENSENSE
- Manufacturer Part No:
- DK-20680HP
- Order Code:
- 3586049
- Technical Datasheet:
- DK-20680HP Datasheet
Product Overview
DK-20680HP is a IAM-20680HP evaluation board. The IAM-20680HP is a 6-axis MotionTracking device for Automotive not-safety applications that combines a 3- axis gyroscope and a 3-axis accelerometer in a small 3x3x0.75mm (16-pin LGA) package. It also features a 4096-byte FIFO that can lower the traffic on the serial bus interface and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. IAM-20680HP, with its 6-axis integration, enables manufacturers to eliminate the costly and complex selection, qualification and system level integration of discrete devices, guaranteeing optimal motion performance.
- Gyroscope has a programmable full-scale range of ±250dps, ±500dps, ±1000dps, ±2000dps
- Accelerometer has a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, ±16g
- User-programmable digital filters for gyroscope, accelerometer and temperature sensor
- Embedded Self-test
- Wake-on-motion interrupt for low power operation of applications processor
- Reliability testing performed according to AEC-Q100
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Technical Documents (1)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
4 In stock Need more?
4 in stock for next day delivery (UK stock) :Order before 18:00 (for re-reeled items 17:30) Mon-Fri (excluding National Holidays)
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 10/2/23
More stock available week commencing 10/2/23
Standard lead time for this product is 27 weeks.
Standard lead time for this product is 27 weeks.
With you next business day
×
Order before 18.00 Hrs
Monday to Friday excluding National Holidays
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
€86.42
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
